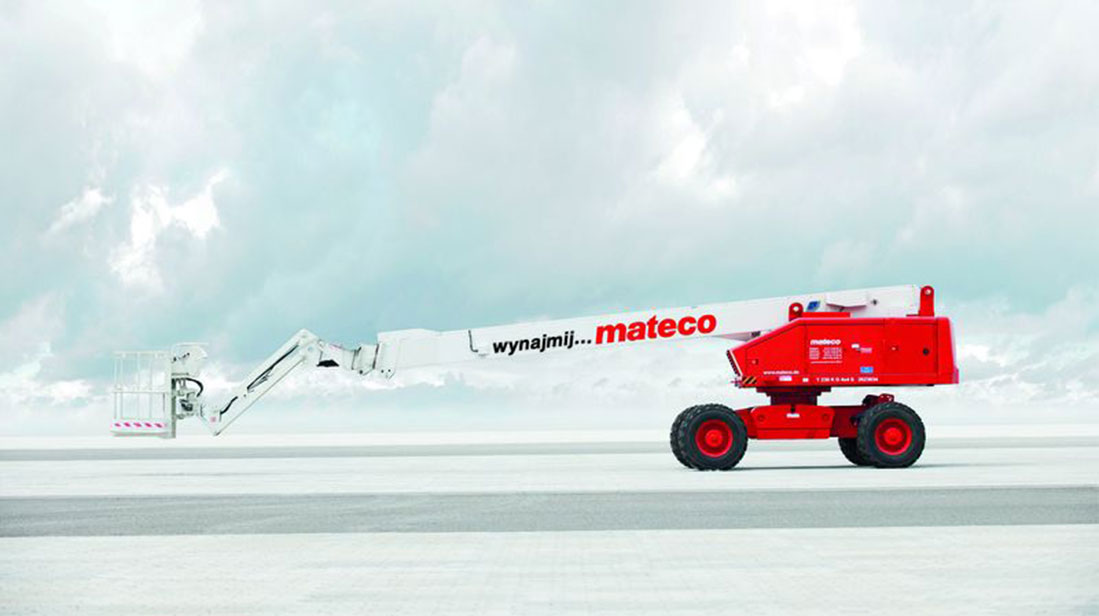

Telescopic Booms
These solid, rugged working platforms are used wherever a large lateral reach, constant load capacity and working heights of up to 57 m are concerned—indoors and outdoors. It is an excellent choice if the operator needs to work in greater distance from the base where the terrain and other obstacles prevent the work in close proximity to the given workplace. Models with JIB can reach even places that are difficult to reach and places above and below various obstacles. The platform providing highperformance, high travelling speed and lifting height.
Rent Telescopic Booms from mateco
| Type | Manufacturer | Working Height | Capacity | Transport dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| max | max | Length | Width | Height | |||||
| T 157 K D 4x4 B | Genie | 15.72 m | 227 kg | 8.49 m | 2.24 m | 2.49 m | Request | ||
| T 157 K D KE | GENIE | 15.72 m | 227 kg | 6.80 m | 2.24 m | 2.49 m | Request | ||
| T 160 K D 4x4 B | JLG | 16.02 m | 230 kg | 8.84 m | 2.31 m | 2.41 m | Request | ||
| T 203 D 4x4 S | GENIE | 19.79 m | 340 kg | 8.46 m | 2.49 m | 2.72 m | Request | ||
| T 218 K D 4x4 | GENIE | 21.80 m | 227 kg | 9.42 m | 2.49 m | 2.72 m | Request | ||
| T 218 K D 4x4 S | GENIE | 21.80 m | 227 kg | 9.42 m | 2.59 m | 2.77 m | Request | ||
| T 218 KD 4x4 S | GENIE | 21.80 m | 300 kg | 9.70 m | 2.49 m | 2.82 m | Request | ||
| T 221 K D 4X4 S | JLG | 22.31 m | 230 kg | 10.21 m | 2.42 m | 2.56 m | Request | ||
| T 279 K D 4x4 S | GENIE | 27.90 m | 227 kg | 12.20 m | 2.50 m | 2.80 m | Request | ||
| T 279 K D 4x4 S | GENIE | 27.74 m | 454.30 t | 12.37 m | 2.49 m | 2.80 m | Request | ||
| T 282 K D 4x4 S | JLG | 28.21 m | 227 kg | 12.19 m | 2.49 m | 3.05 m | Request | ||
| T 340 K D 4x4 S | GENIE | 34.00 m | 227 kg | 14.02 m | 2.54 m | 3.00 m | Request | ||
| T 401 K D 4x4 S | GENIE | 40.15 m | 227 kg | 14.25 m | 2.49 m | 3.07 m | Request | ||
| T 432 K+ D 4x4 S | JLG | 43.30 m | 230 kg | 14.89 m | 2.49 m | 3.05 m | Request | ||
| T 477 K D 4x4 S | JLG | 45.72 m | 230 kg | 18.82 m | 2.49 m | 3.05 m | Request | ||
| T 570 K+ D 4x4 S | GENIE | 56.86 m | 340 kg | 14.33 m | 2.49 m | 3.05 m | Request | ||
T Telescopic working platform
K Jib
K+ 2-dimensional swivelling jib
D Diesel drive
4x4 All-wheel drive
KE Rubber-tracked chassis
S Narrow
B Wide
No liability shall be accepted for printing errors. Subject to technical changes. All specifications relating to dimensions, weights and the working diagrams are approximate specifications. Actual specifications for the same device types at different branches may differ from the specifications cited, this being due, for example, to product innovations and product-related tolerances. Please ask your mateco sales representative for more detailed information.
